Niedax ULIH80E4 stainless steel (pair) butt connector

In stock
SKU: 791447
€49.39
Into a basketIn the basketGo

Overview

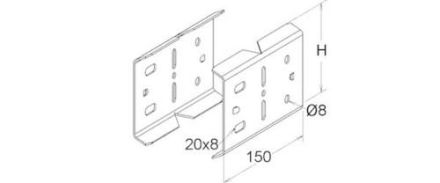

Joint connector, horizontal, screwless, for horizontal changes in direction and a longitudinally aligned connection of the cable ladders and their fittings at the joint. When assembling the cable ladders, an assembly distance of approx. 30 mm must be taken into account. It must also be ensured that the elongated holes in the connectors are arranged on the side of the joint on which the boom is located. The ULP 100 assembly pliers are used as an assembly aid. The connector holes enable permanent fastening and ensure that the material can expand. To ensure correct assembly, 4 FKM 6X20 E4 screws must be attached per connector under high loads. Can be used for: GRP cable ladder UL 80... GRP cable ladder ULL 80... and their fittings Required: 1 pair (2 pieces) per joint Dimensions (approx. dimensions) H x L: 72 x 150 mm Material thickness t: 1 mm Fastening holes, two rows: Ø 8 mm and 8x20 mm Center distance: 45 mm Row spacing: 40 mm Material: Stainless steel, material no. 1.4404, AISI 316L

Property Value
Suitable for functional integrity: no
Suitable for cable support system width: 150 to 600 mm
Length: 150 mm
Design: Longitudinal connector
Hinged connector horizontal: yes
Hinged connector vertical: no
Connection type: screwless connector
Suitable for mesh cable tray: no
Suitable for cable ladder: no
Suitable for cable tray: yes
Suitable for cable support system height: 80 mm
Material: stainless steel
Stainless steel, pickled: no
Material quality: rust and acid-resistant steel
Surface: other

Characteristics

Suitable for Functional integrityNo
HABStainless steel (pair)
ManufacturerNiedax
HANULIH80E4
GTIN4013339960200
VersionLongitudinal connector
Length150 mm
SurfaceOther
Connection typeScrewless connector
MaterialStainless steel
Material qualityRust and acid resistant steel
