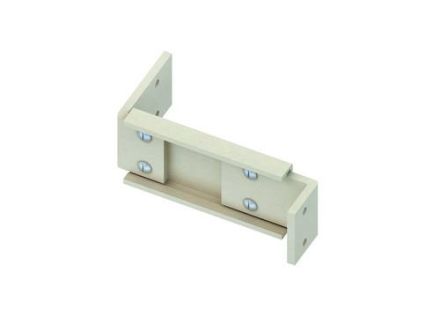

GRP reducer, pultruded, with perforated connecting tabs, for reducing and extending continuous cable ladders, dimension B corresponds to the reduction/extension, please order the corresponding fastening accessories separately, halogen-free. The following must be observed during assembly: - When connecting the reducer, an assembly distance of approx. 30 mm must be taken into account. - The reducer must be supported with a bracket. - To ensure correct assembly, the reducer and the connector must each be screwed to the cable ladder transition with 4 FKM 6X20 E4. GRP reducer with connecting tabs (1) made of stainless steel on request. The joint connectors ULGH 80 and ULIH 80 E4 are not included in the scope of delivery (please order separately). Used for: GRP cable ladder UL 80... GRP cable ladder ULL 80... Dimensions (approx. dimensions) H x W: 80 x 400 mm Reduction dimension W: 400 mm Material: UP-GF (glass fiber reinforced polyester) Screw material: stainless steel, material no. 1.4404, AISI 316L Color: pebble gray RAL: 7032 (similar)
