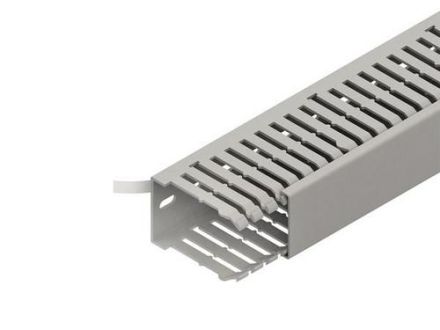

Wiring duct according to DIN EN 50085-2-3, with cover and single-row fastening holes according to former DIN 43659 in the duct base, provided with double-sided adhesive tape on the underside for better fixing, the bars can be broken out without tools, contains halogen. Dimensions (approx. dimensions) Height H x Width W: 25 x 25 mm Slot width: 5 mm Web width: 7.5 mm Single row bottom holes: 6.5 x 14 and 4.5 x 8 mm Bottom hole spacing: 25 mm Delivery length L: 2000 mm Usable cross section: 570 mm² Operating temperature range: -5° to 65°C Color: stone gray RAL: 7030 (similar) Material: PVC, hard, contains halogen (polyvinyl chloride-hard)
