Niedax VM03-AM8T EKLIPS rod fastening

In stock
SKU: 793582
€3.73
Into a basketIn the basketGo

Overview

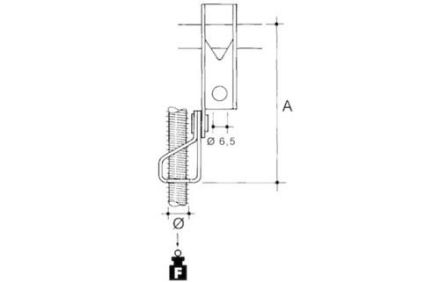

E-clips, 45° clamp with angle hanger, for hammering onto various 45° angled support profiles, for threaded rod suspension. Dimensions (approx. dimensions) for flange thickness T: 1 - 3 mm Connection fastening hole between the clamp brackets: Ø 6.5 mm Distance from the lower edge of the hanger to the upper edge of the impact angle A: 77 mm for connection threaded rod: M 8 Load capacity F: 0.45 kN Material: Steel, mechanically galvanized/passivated in accordance with DIN EN ISO 9227

Property Value
Material: Steel
Suitable for flange thickness: 1 to 3 mm
Breaking load: 450 N
Thread size (metric): 8
Mounting type: Spring clamp
Connection type/component: Thread
Hinged: no
Adjustable hinge: no
Surface: galvanized/electrolytically galvanized

Characteristics

Thread size (metric)8
Hinge adjustableNo
Suitable for flange thickness1 to 3 mm
Connection type/componentThread
HABVM03-AM8T
ManufacturerNiedax
HANVM03-AM8T
GTIN4013339755325
Mounting typeSpring clamp
SurfaceGalvanized/electrolytically galvanized
HingedNo
MaterialSteel
