OBO Bettermann V-TEC TB25 06-09 divisible cable gland, 2024912

In stock
SKU: 509536
€27.93
Into a basketIn the basketGo

Overview

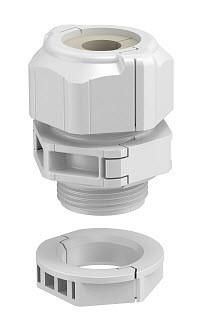

The V-TEC TB cable gland, like all V-TEC glands, ensures that the cables are securely sealed. The fact that the cable gland can be split allows for easy and quick installation of, for example, pre-assembled cables. Another advantage is the ability to retrofit cables to existing installations. Unbeatable as a repair screw connection, it can be installed without dismantling pre-assembled cables and without interrupting ongoing production.

Property Value
Thread pitch: 1.5 mm
Metric thread size: 25
Suitable for cable diameters: 6 to 7.5 mm
Protection class (IP): IP67
Operating temperature: -20 to 80 °C
Halogen-free: yes
Thread length: 11 mm
Thread type: metric
Color: gray
Material: plastic
Impact-resistant: yes
Material quality: polycarbonate (PC)
Design: straight
With strain relief: no
Type of seal: Sealing ring
Bending protection: no
With lock nut: yes
Multiple sealing inserts: no
Flat cable screw connection: no
Dividable screw connection: yes
Explosion-tested version: no
For Ex zone gas: without
For Ex zone Dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Suitable for cable diameter6 to 7.5mm
HABV-TEC TB25 06-09 divisible
ManufacturerOBO Bettermann
HAN2024912
GTIN4012196563289
VersionStraight
Operating temperature-20 to 80 °C
ColorGray
Thread typeMetric
Thread length11 mm
Thread1.5 mm
Halogen freeYes
With strain reliefNo
IP protection)IP67
MaterialPlastic
Material qualityPolycarbonate (PC)
