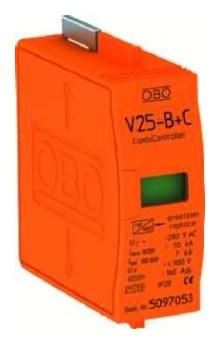

OBO Bettermann V25-B+C/0-280V for combination arrester upper part CombiController, 5097053

OBO Bettermann V25-B+C/0-280V for combination arrester upper part CombiController, 5097053

In stock

SKU: 499793

Price on request

€81.96

€0

Into a basketIn the basketGo

Overview

Combined lightning current and surge arrester type 1+2 (class B+C) according to EN 61643-11. Optical function display, protection level < 1 kV, max. required backup fuse 160 A. Encapsulated, non-blow-out varistor arresters. 5 year warranty

Property	Value
Maximum continuous voltage AC:	280 V
Lightning impulse current (10/350 µs):	7 kA
Protection level:	0.9 kV
Number of poles:	1
Nominal voltage AC:	230 V
Size:	1 TE
Signaling on the device:	optical
Maximum continuous voltage DC:	350 V
Mounting type:	on base element
Max. conductor cross-section rigid (single/multi-wire):	35 mm²
Protection class (IP):	IP20

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²

Lightning surge current (10/350 µs)7 kA

Protection level0.9 kV

Highest continuous voltage DC350 V

HABV25-B+C/0-280V for combined arrester

Manufacturer

HAN5097053

GTIN4012195394099

Size1 TE

Highest continuous voltage AC280V

Mounting typeOn base element

Nominal voltage AC230V

Number of poles1

IP protection)IP20

Signaling on the deviceOptical

OBO Bettermann V25-B+C/0-280V for combination arrester upper part CombiController, 5097053

OBO Bettermann V25-B+C/0-280V for combination arrester upper part CombiController, 5097053

Price on request

€81.96

€0

Into a basketIn the basketGo
