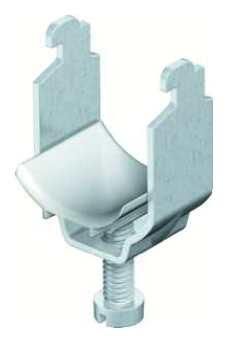

OBO Bettermann 2056N 16 ALU 12-16mm clamp, 1183613

In stock
SKU: 498495
€3.89
Into a basketIn the basketGo

Overview

Suitable for all profile rails with 11 - 12 mm slot width, at least 6.5 mm clear internal height and at least 18.5 mm clear internal width. Clamp and screw made of aluminum ALMg3, pressure pan made of polypropylene, halogen-free, light gray RAL 7035.

Property Value
Clamping range: 12 to 16 mm
Clamp material: Aluminium
Screw material: Aluminium
Mounting type: Profile rail
Halogen-free: yes
For pipe size (metric): 16
Max. number of cables: 1
Material quality of the clamp: other
Material of the tray: plastic
Material quality of the tray: polypropylene (PP)
Material quality of the screw: other
With counter tray: no

Characteristics

HAB2056N 16 ALUMINUM 12-16mm
Minimal order50 pcs
ManufacturerOBO Bettermann
HAN1183613
GTIN4012195436577
Halogen freeYes
Mounting typeProfile rail
