Various angles
OBO Bettermann GKH-F70130RW halogen-free pure white flat angle, 6114240

OBO Bettermann GKH-F70130RW halogen-free pure white flat angle, 6114240

In stock

SKU: 508793

Price on request

€54.06

€0

Into a basketIn the basketGo

Overview

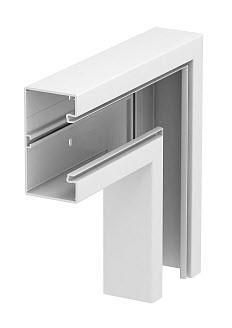

Flat angle made of halogen-free PC/ABS for changing the direction of the GKH device installation ducts with a system opening of 80 mm.

Property	Value
Width:	130 mm
Color:	white
RAL number:	9010
Material:	Plastic
Material quality:	other
Depth:	70 mm
Design:	Lower part
Number of upper parts:	1
Upper part width 1:	76.5 mm
Direction:	rising/falling
Symmetrical:	yes
Angle:	90 °
Halogen-free:	yes
With protective film:	yes
With channel connector:	no
Mounting holes in the base:	yes
Mounting type of upper parts:	internal
With cable retaining clip:	no
Antibacterial treatment:	no
Protection class (IP):	IP30
Impact resistance:	IK08
Operating temperature:	-15 to 90 °C

Characteristics

HABGKH-F70130RW halogen-free pure white

Manufacturer

HAN6114240

GTIN4012196450909

Antibacterial treatmentNo

VersionBottom part

Width130 mm

Operating temperature-15 to 90 °C

Color

Halogen freeYes

RAL number9010

Impact resistanceIK08

IP protection)IP30

Depth70 mm

MaterialPlastic

Material qualityOther
