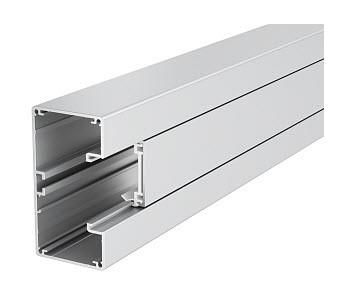

OBO Bettermann GA-53100EL Rapid 45-2 1-compartment aluminum device installation duct, 6112403

In stock
SKU: 509162
€79.87
Into a basketIn the basketGo

Overview

Aluminium device installation duct consisting entirely of upper and lower sections. The lower part has no holes in the bottom.

Property Value
Width: 100 mm
Length: 2000 mm
Depth: 53 mm
Material: Aluminium
Halogen-free: yes
Design rectangular: yes
Number of upper parts: 1
Top width 1: 45 mm
Symmetrical: yes
Surface protection: anodized/anodised
Rear wall design (inside): continuous C-profile
With protective film: yes
Number of plug-in partitions: 1
With channel connector: no
Mounting holes in the base: no
Mounting type of the upper parts: internal
With cable retaining clip: no
Top parts supplied: yes
Antibacterial treatment: no
Protection class (IP): IP30
Impact resistance: IK10
Operating temperature: -15 to 60 °C

Characteristics

HABGA-53100EL Rapid 45-2 1-track aluminum
Minimal order8 meters
ManufacturerOBO Bettermann
HAN6112403
GTIN4012196417919
Antibacterial treatmentNo
Width100 mm
Operating temperature-15 to 60 °C
Halogen freeYes
Length2000 mm
Surface protectionAnodized
Impact resistanceIK10
IP protection)IP30
Depth53 mm
MaterialAluminum
