OBO Bettermann GA-53100RW Rapid 45-2 1-compartment aluminum device installation duct, 6112400

OBO Bettermann GA-53100RW Rapid 45-2 1-compartment aluminum device installation duct, 6112400

In stock

SKU: 509161

Price on request

€79.87

€0

Into a basketIn the basketGo

Overview

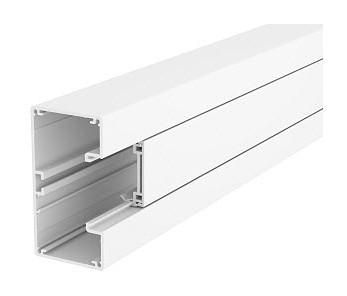

Aluminium device installation duct consisting entirely of upper and lower sections. The lower part has no holes in the bottom.

Property	Value
Width:	100 mm
Length:	2000 mm
Depth:	53 mm
Color:	white
RAL number:	9010
Material:	Aluminium
Halogen-free:	yes
Rectangular design:	yes
Number of top parts:	1
Top part width 1:	45 mm
Symmetrical:	yes
Rear wall design (inside):	continuous C-profile
With protective film:	yes
Number of plug-in partitions:	1
With channel connector:	no
Mounting holes in the base:	no
Mounting type of top parts:	internal
With cable retaining clip:	no
Top parts included:	yes
Antibacterial treatment:	no
Protection class (IP):	IP30
Impact resistance:	IK10
Operating temperature:	-15 to 60 °C

Characteristics

HABGA-53100RW Rapid 45-2 1-track aluminum

Minimal order8 meters

Manufacturer

HAN6112400

GTIN4012196417902

Antibacterial treatmentNo

Width100 mm

Operating temperature-15 to 60 °C

Color

Halogen freeYes

Length2000 mm

RAL number9010

Impact resistanceIK10

IP protection)IP30

Depth53 mm

MaterialAluminum
