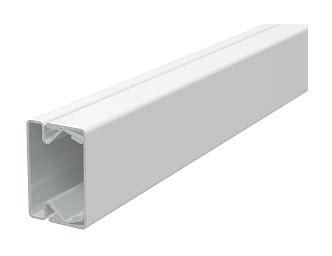

OBO Bettermann LKM 20030 20x30 pure white cable routing duct, 6248470

In stock
SKU: 500451
€10.45
Into a basketIn the basketGo

Overview

Top and bottom sections of the duct with holes in the bottom for simplified installation. Potential equalization is ensured between the top and bottom sections without the need for any additional aids. The LKM cable duct type LKM 20030FS is tested as a cable-specific installation system for functional integrity in accordance with DIN 4102 Part 12.

Property Value
Length: 2000 mm
Height: 24 mm
Width: 30 mm
Color: white
RAL number: 9010
Material: steel
Usable cross-section: 519 mm²
Halogen-free: yes
Fastening type: Bottom perforation
Suitable for functional integrity: yes
Surface protection: strip-galvanized and coated
Cover design: loose
With cable retaining clip: no
With protective film: no
With channel connector: no
Antibacterial treatment: no
Protection class (IP): IP30
Impact resistance: IK10
Operating temperature: -5 to 90 °C

Characteristics

Suitable for Functional integrityYes
HABLKM 20030 20x30 pure white
Minimal order2 meters
ManufacturerOBO Bettermann
HAN6248470
GTIN4012196119059
Antibacterial treatmentNo
Cover designLoose
Mounting typeBottom perforation
Width30 mm
Operating temperature-5 to 90 °C
ColorWhite
Halogen freeYes
Height24 mm
Length2000 mm
Surface protectionStrip galvanized and coated
RAL number9010
Impact resistanceIK10
IP protection)IP30
MaterialSteel
