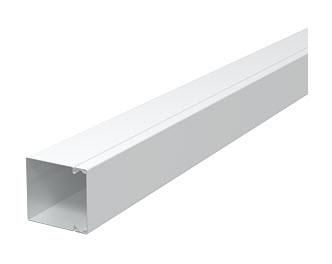

OBO Bettermann LKM80080FS with bottom perforation cable routing duct, 6247194

OBO Bettermann LKM80080FS with bottom perforation cable routing duct, 6247194

In stock

SKU: 503705

Price on request

€21.33

€0

Into a basketIn the basketGo

Overview

Channel top and bottom with bottom holes. The potential equalization is ensured between the upper and lower parts without any additional aids.

Property	Value
Length:	2000 mm
Height:	80 mm
Width:	80 mm
Material:	Steel
Usable cross-section:	5840 mm²
Halogen-free:	yes
Mounting type:	Bottom perforation
Suitable for functional integrity:	no
Surface protection:	strip galvanized
Cover design:	loose
Number of plug-in partitions:	1
With cable retaining clip:	no
With protective film:	no
With duct connector:	no
Antibacterial treatment:	no
Protection class (IP):	IP30
Impact resistance:	IK10
Operating temperature:	-5 to 90 °C

Characteristics

Suitable for Functional integrityNo

HABLKM80080FS with bottom perforation

Minimal order2 meters

Manufacturer

HAN6247194

GTIN4012195691006

Antibacterial treatmentNo

Cover designLoose

Mounting typeBottom perforation

Width80 mm

Operating temperature-5 to 90 °C

Halogen freeYes

Height80 mm

Length2000 mm

Surface protectionStrip galvanized

Impact resistanceIK10

IP protection)IP30

MaterialSteel

OBO Bettermann LKM80080FS with bottom perforation cable routing duct, 6247194

OBO Bettermann LKM80080FS with bottom perforation cable routing duct, 6247194

Price on request

€21.33

€0

Into a basketIn the basketGo
