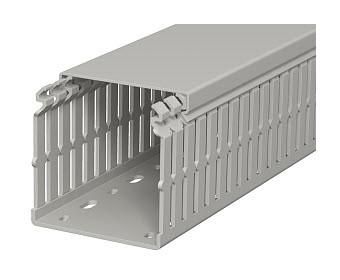

OBO Bettermann LKV/N 75075 75x75 stone grey wiring duct, 6178426

In stock
SKU: 501393
€11.09
Into a basketIn the basketGo

Overview

Slotted PVC duct with upper part for horizontal and vertical installation in the control cabinet. Tapering in the side slots prevents the cables from falling out. For wiring ducts of the LKV and LKV/N series, the nominal size of the type corresponds to the external dimensions of the duct.

Property Value
Height: 75 mm
Width: 75 mm
Length: 2000 mm
Color: gray
Halogen-free: no
With top: yes
Slot spacing: 12.5 mm
Slot width: 5 mm
Side wall design: slotted
Flexible: no
Usable cross-section: 4795 mm²
Mounting type: bottom perforation
Self-extinguishing: yes
Material: Polyvinyl chloride (PVC)
RAL number: 7030

Characteristics

Self-extinguishingYes
HABLKV/N 75075 75x75 stone grey
Minimal order16 meters
ManufacturerOBO Bettermann
HAN6178426
GTIN4012196013555
Mounting typeBottom perforation
Width75 mm
ColorGray
FlexibleNo
Halogen freeNo
Height75 mm
Length2000 mm
RAL number7030
MaterialPolyvinyl chloride (PVC)
