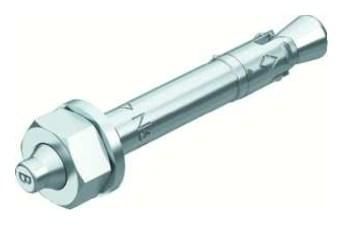

OBO Bettermann N 6-5-10/49 6x49mm galvanized nail anchor N, 3498396

In stock
SKU: 508103
€1.83
Into a basketIn the basketGo

Overview

The nail anchor N can be used for multiple fastenings of non-load-bearing systems in cracked and non-cracked concrete and combines the advantages of a bolt anchor with even simpler installation. The nail anchor only needs to be driven into the drill hole. The subsequent application of a torque is not necessary. When the load occurs, the nail anchor expands automatically and anchors itself in the drill hole. European Technical Approval ETA-11/0240, including characteristic values under fire exposure up to fire resistance period R 120.

Property Value
Length: 49 mm
Sleeve material: steel
Surface protection: galvanized/electrolytically galvanized
Thread size (metric): 6
Drill hole diameter: 6 mm
Min. Drill hole depth: 40 mm
Fastening device: other
With approval: yes
Self-drilling: no
Through-hole installation: yes
Pre-positioned installation: no
Spaced-off installation: no
Suitable for concrete: yes
Suitable for natural stone: no

Characteristics

Suitable for concreteYes
Thread size (metric)6
HABN 6-5-10/49 6x49mm galvanized
Minimal order100 pcs
ManufacturerOBO Bettermann
HAN3498396
GTIN4012196411948
Length49 mm
Surface protectionGalvanized/electrolytically galvanized
OBO Bettermann N 6-5-10/49 6x49mm galvanized nail anchor N, 3498396
OBO Bettermann N 6-5-10/49 6x49mm galvanized nail anchor N, 3498396
