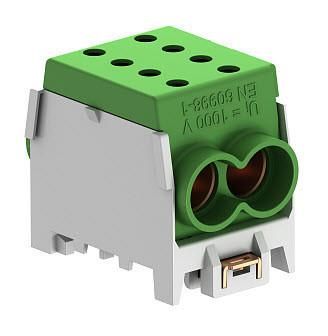

OBO Bettermann HLAK 1-2x35 GRGN 35/50mm grey/green main line branch terminal, 2009044

In stock
SKU: 508134
€20.23
Into a basketIn the basketGo

Overview

The OBO main line branch terminals HLAK are among the safest terminals used in the field of electrical installation. The basic use of two screws per terminal point ensures a safe contact pressure even if the external clamp has become loose due to bending of the conductor. The HLAK.... are multi-pole blocks with high-strength quick fastening made of galvanized sheet steel. These types are available with one, four and five poles and also offer excellent snap-on convenience on support rails. Terminal covers are available in the usual established conductor colors.

Property Value
Number of poles: 1
Nominal current: 190 A
Width: 55 mm
Height: 40 mm
Depth: 40 mm
Connection type: screws
Suitable for solid conductors: yes
Suitable for stranded conductors: yes

Characteristics

HABHLAK 1-2x35 GRGN 35/50mm grey / green
ManufacturerOBO Bettermann
HAN2009044
GTIN4012196614363
Connection typeScrew
Width55 mm
Suitable for solid laddersYes
Suitable for stranded conductorsYes
Height40 mm
Rated current190A
Number of poles1
Depth40 mm
