Rated operating current Ie at DC-13, 230 V0.03 A
Rated operating current Ie at DC-13, 125 V0.05 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V10 A

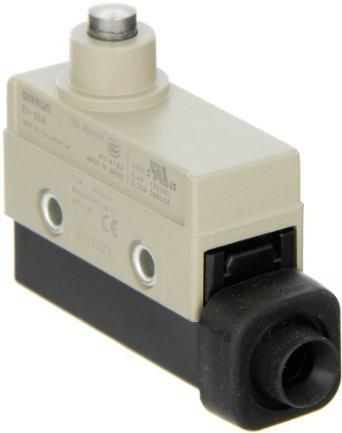

HABZC-D55
HAN106416
GTIN4536854251061
Number of contacts as changeover1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementTappet
Design of the electrical connectionOther
Alignment of the actuatorOther
Rated operating current Ie at AC-15, 230 V10A
Rated operating current Ie at DC-13, 24 V5A
Housing coatingOther
Width of the sensor70 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor54.4 mm
Length of the sensor21.7 mm
With status displayNo
Switching functionOther
IP protection)IP67
Protection class (NEMA)Other
Ambient temperature during operation-10 to 80 °C
Housing materialPlastic
Forced openingNo
