Rated operating current Ie at DC-13, 230 V0.25 A
Rated operating current Ie at DC-13, 125 V0.5 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V15 A

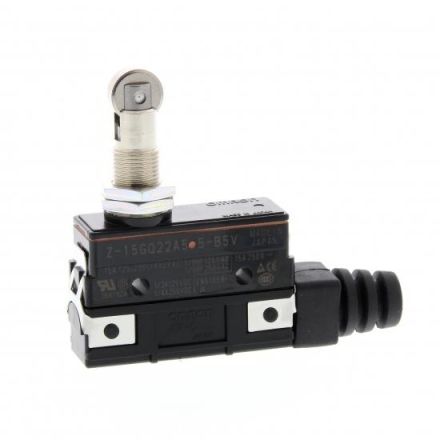

HABZ-15GQ22A55-B5V
HAN106686
GTIN4536854264016
Number of contacts as changeover1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementRoller tappet
Design of the electrical connectionOther
Alignment of the actuatorRoller tappet straight
Rated operating current Ie at AC-15, 230 V15A
Rated operating current Ie at DC-13, 24 V6A
Housing coatingOther
Width of the sensor81.6 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor68.9 mm
Length of the sensor17.45 mm
With status displayNo
Switching functionSnap action contact
Switching function latchingNo
IP protection)Other
Protection class (NEMA)Other
Ambient temperature during operation-15 to 80 °C
Housing materialPlastic
Forced openingNo
