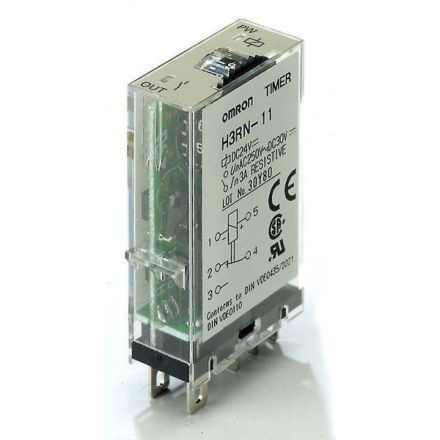

OMRON 120362 H3RN-11 12DC time relay

In stock

SKU: 613915

Price on request

€68.76

€0

Overview

Time relay, - multifunction, socketable, G2R1S pinning, 1 W, - 4 time functions: AV, EW, TI, TP, - time range adjustable: 0, 1min..10h, - function/time range selectable via DIP switch, - IP40, - LR, UL, CSA, conforms to EN61812-1

Property	Value
Number of outputs, delayed, changeover:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	DC
Time range:	0.1 to 36000 s
Rated control supply voltage Us at DC:	11.4 to 13.2 V
Width:	12.8 mm
Depth:	47.4 mm
Height:	31.2 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	yes
Off-delayed function:	no
Swift on-function:	yes
Swift off-function:	no
Star/delta function:	no
Function Pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	yes
With semiconductor output:	no
