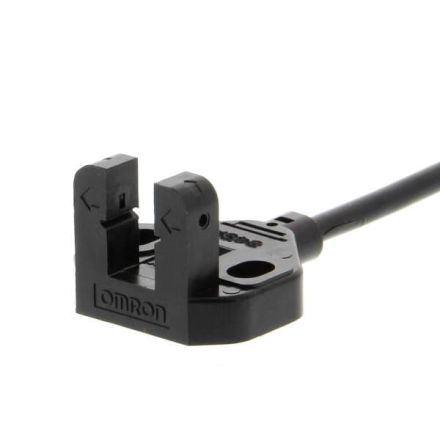

OMRON 127597 EE-SX771R photo switch

OMRON 127597 EE-SX771R photo switch

In stock

SKU: 608961

Price on request

€52.51

€0

Into a basketIn the basketGo

Overview

127597 EE-SX771R photo switch Manufacturer article number: 127597, Manufacturer article name: EE-SX771R

Property	Value
Max. switching distance:	5 mm
With communication interface SSI:	no
Min. Object size:	0.8 mm
With DeviceNet communication interface:	no
Laser protection class:	without
Design of the interface for safety-related communication:	other
With PROFIBUS communication interface:	no
Height of the sensor:	21 mm
Cable sheath material:	Polyvinyl chloride (PVC)
With other analog output:	no
Sensor wavelength:	940 nm
Button function:	dark switching
With communication interface AS-Interface:	no
Setting method:	other
Housing material:	plastic
Explosion protection category for gas:	without
Safety type according to IEC 61496-1:	1
Width of the sensor:	18 mm
Equipment protection class:	Protection class 3
With communication interface RS-232:	no
Fork width:	5 mm
With communication interface SSD:	no
Rated control supply voltage Us at DC:	4.5 to 26.4 V
Pre-failure message:	no
Explosion protection category for dust:	without
Design of the electrical connection:	Cable
Reflector included in delivery:	no
Type of light:	Infrared light
With communication interface INTERBUS:	no
Suitable for safety functions:	no
Number of semiconductor outputs with signaling function:	1
Reaction time:	0.17 ms
With Monitoring function of downstream devices:	no
With RS-422 communication interface:	no
With analog communication interface:	no
Ambient temperature:	-25 to 55 °C
Fork depth:	9 mm
With CANOpen communication interface:	no
Switching function design:	Opener (NC)
AWG number:	28
Switching frequency:	3000 Hz
Analog output -10 V ... +10 V:	no
Analog output 4 mA ... 20 mA:	no
With Ethernet communication interface:	no
With RS-485 communication interface:	no
Analog output 0 mA ... 20 mA:	no
Housing design:	Special design
Analog output 0 V ... 10 V:	no
Lenght of the sensor:	13 mm
With restart lock:	no
Material of the optical surface:	Plastic
Rated switching distance:	5 mm
Design of the switching output:	PNP
Max. Output current:	50 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	other
Protection class (NEMA):	other
