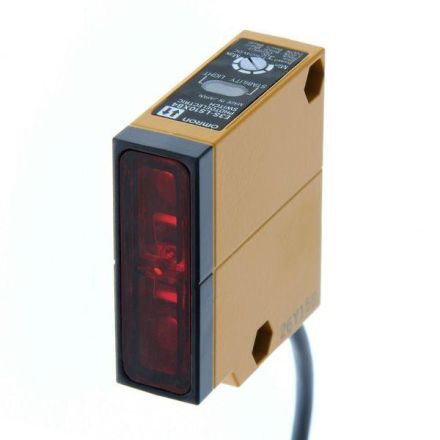

130256 E3S-LS10XB4 photo switch Manufacturer article number: 130256, Manufacturer article name: E3S-LS10XB4
| Property | Value |
| Ambient temperature: | -25 to 55 °C |
| Design of the switching output: | PNP |
| Explosion protection category for gas: | without |
| With restart lock: | no |
| Adjustment range: | 30 to 100 mm |
| Housing material: | Plastic |
| Switching frequency: | 1000 Hz |
| Width of sensor: | 17 mm |
| With communication interface RS-232: | no |
| Min. Reflector spacing: | 30 mm |
| With DeviceNet communication interface: | no |
| Explosion protection category for dust: | without |
| Analog output -10 V ... +10 V: | no |
| With INTERBUS communication interface: | no |
| Design of the electrical connection: | Cable |
| Button function: | light/dark switching |
| Length of the sensor: | 50 mm |
| Setting method: | manual setting |
| Number of semiconductor outputs with signaling function: | 1 |
| Safety type according to IEC 61496-1: | 1 |
| Equipment protection class: | Protection class 0 |
| With analog communication interface: | no |
| Light type: | polarized red light |
| With SSI communication interface: | no |
| With communication interface RS-422: | no |
| Triangulation: | Background suppression |
| Analog output 0 V ... 10 V: | no |
| With monitoring function for downstream devices: | no |
| With communication interface PROFIBUS: | no |
| Cable sheath material: | Polyvinyl chloride (PVC) |
| Suitable for safety functions: | no |
| With communication interface CANOpen: | no |
| With communication interface AS-Interface: | no |
| Housing design: | Cuboid |
| With other analog output: | no |
| Pre-failure message: | no |
| Laser protection class: | without |
| Height of the sensor: | 55 mm |
| Rated switching distance: | 100 mm |
| Switching function design: | Normally open (NO) |
| Scanning range: | 30 to 100 mm |
| Material of the optical surface: | Plastic |
| Max. Output current at the safe output: | 100 mA |
| With Ethernet communication interface: | no |
| Design of the interface for safety-related communication: | other |
| Analog output 4 mA ... 20 mA: | no |
| With RS-485 communication interface: | no |
| Response time: | 1 ms |
| Reflector included in delivery: | no |
| Analog output 0 mA ... 20 mA: | no |
| With communication interface SSD: | no |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Max. switching distance: | 100 mm |
| Max. Output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP67 |
