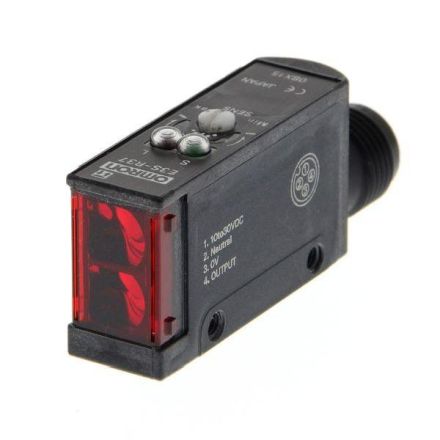

130422 E3S-R17 photo switch Manufacturer article number: 130422, Manufacturer article name: E3S-R17
| Property | Value |
| Rated switching distance: | 300 mm |
| Max. switching distance: | 300 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 21 mm |
| Width of sensor: | 12.4 mm |
| Length of sensor: | 52.3 mm |
| Reaction time: | 1 ms |
| Switching frequency: | 500 Hz |
| Laser protection class: | without |
| Type of voltage: | DC |
| Housing material: | Plastic |
| With SSI communication interface: | no |
| With AS-Interface communication interface: | no |
| With time function: | no |
| With DeviceNet communication interface: | no |
| Execution of the switching function: | other |
| With communication interface INTERBUS: | no |
| With communication interface analog: | no |
| With communication interface Ethernet: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With communication interface PROFIBUS: | no |
| Reflector included in delivery: | yes |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | infrared light |
| Material of the optical surface: | plastic |
| With RS-422 communication interface: | no |
| Setting method: | manual setting |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | Plug connection |
| Design of the switching output: | NPN |
| Equipment protection class: | Protection class 0 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Max. Output current at the safe output: | 100 mA |
| Ambient temperature: | 0 to 40 °C |
| Safety type according to IEC 61496-1: | 1 |
| With monitoring function for downstream devices: | no |
| Pre-failure message: | no |
| Sensor wavelength: | 880 nm |
| With restart lock: | no |
