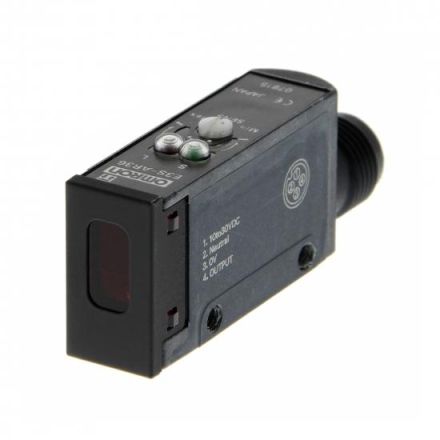

OMRON 130432 E3S-AR36 photo switch

OMRON 130432 E3S-AR36 photo switch

In stock

SKU: 609068

Price on request

€246.45

€0

Overview

Photo switch, - reflection light barrier, range 0.1..2m, - PBT housing, cuboid, axial, - red 700nm, 0.5ms, 10..30VDC, PNP, LON/DON, - 4-pin M12 connector on the housing, - protection class: IP67, - approvals: CE

Property	Value
Rated switching distance:	2000 mm
Max. switching distance:	2000 mm
Min. reflector distance:	10 mm
Max. Output current:	100 mA
Rated control supply voltage Us at DC:	9 to 33 V
Button function:	light/dark switching
Protection class (IP):	IP67
Height of sensor:	21 mm
Width of sensor:	12.4 mm
Length of sensor:	42.3 mm
Reaction time:	0.5 ms
Switching frequency:	1000 Hz
Laser protection class:	without
Type of voltage:	DC
Material of the housing:	Plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
Execution of the switching function:	other
With communication interface INTERBUS:	no
With communication interface Analog:	no
With communication interface Ethernet:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With communication interface PROFIBUS:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	polarized red light
Material of the optical surface:	plastic
With communication interface RS-422:	no
Setting method:	manual setting
With communication interface RS-232:	no
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	other
Design of the electrical connection:	Plug connection
Design of the switching output:	PNP
Equipment protection class:	Protection class 0
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Ambient temperature:	-25 to 55 °C
Safety type according to IEC 61496-1:	1
With monitoring function of downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	700 nm
With restart lock:	no
Protection class (NEMA):	other

Characteristics

Design of the switching functionOther

Switching frequency1000 Hz

HABE3S-AR36

Manufacturer

HAN130432

GTIN4536853282561

Design of the interface for safety-related communicationOther

Design of the switching outputPNP

Design of the electrical connectionPlug connection

Rated control supply voltage Us at DC9 to 33 V

Width of the sensor12.4 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCuboid

Height of the sensor21 mm

Length of the sensor42.3 mm

IP protection)IP67

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialPlastic
