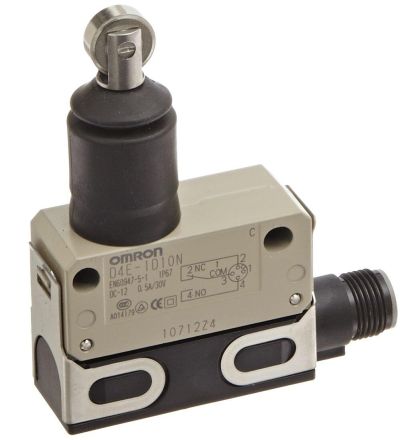

OMRON 133989 D4E-1D10N position switch

In stock

SKU: 612164

Price on request

€93.52

€0

Overview

Die-cast housing, IP67, sealed roller plunger, connector type, VAC

Property	Value
Number of contacts as changeover contact:	1
Length of the sensor:	18 mm
Width of the sensor:	60 mm
Height of the sensor:	71.2 mm
Switching function:	Snap-action switching element
Protection class (IP):	IP67
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the actuating element:	Convex plunger
Design of the electrical connection:	Connector M12
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-10 to 80 °C
Forced opening:	no
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.03 A
Rated operating current Ie at DC-13, 125 V:	0.05 A
Rated operating current Ie at DC-13, 24 V:	0.5 A
Alignment of the actuating element:	Roller plunger straight
Protection class (NEMA):	other

Characteristics

Rated operating current Ie at DC-13, 230 V0.03 A

Rated operating current Ie at DC-13, 125 V0.05 A

Electronic outputNo

HABD4E-1D10N

Manufacturer

HAN133989

GTIN4536853223410

Number of contacts as changeover1

Implementation of the interfaceWithout

Design of the interface for safety-related communicationWithout

Design of the actuating elementTappet

Design of the electrical connectionConnector M12

Alignment of the actuatorRoller tappet straight

Rated operating current Ie at DC-13, 24 V0.5A

Housing coatingOther

Width of the sensor60 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCuboid

Height of the sensor71.2 mm

Length of the sensor18 mm

With status displayNo

Switching functionSnap action contact

IP protection)IP67

Protection class (NEMA)Other

Ambient temperature during operation-10 to 80 °C

Housing materialMetal

Forced openingNo
