Rated operating current Ie at DC-13, 230 V0.2 A
Rated operating current Ie at DC-13, 125 V0.4 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V5 A

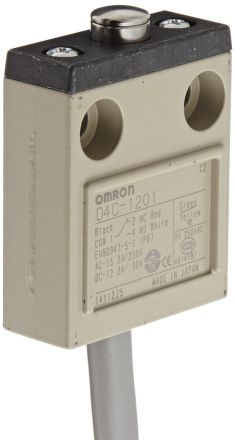

HABD4C-1201
HAN134459
GTIN4536853210052
Number of contacts as changeover1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementTappet
Design of the electrical connectionPre-assembled with cable
Alignment of the actuatorOther
Rated operating current Ie at AC-15, 230 V2 A
Rated operating current Ie at DC-13, 24 V2 A
Housing coatingOther
Width of the sensor40 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor54.2 mm
Length of the sensor16 mm
With status displayNo
Switching functionSnap action contact
Switching function latchingNo
IP protection)IP67
Protection class (NEMA)Other
Ambient temperature during operation-10 to 70 °C
Housing materialMetal
Forced openingNo
