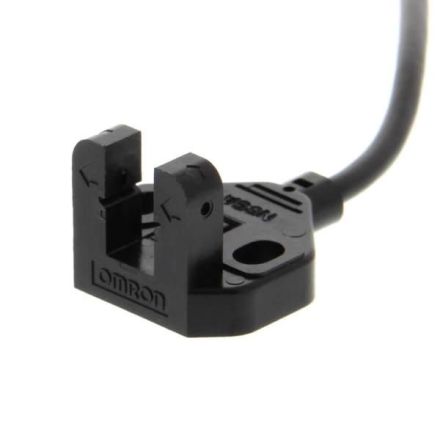

OMRON 143910 EE-SX871A 2M photo switch

OMRON 143910 EE-SX871A 2M photo switch

In stock

SKU: 609219

Price on request

€49.92

€0

Into a basketIn the basketGo

Overview

143910 EE-SX871A 2M photo switch Manufacturer article number: 143910, Manufacturer article name: EE-SX871A 2M

Property	Value
Max. switching distance:	5 mm
With communication interface SSI:	no
Min. Object size:	0.8 mm
With DeviceNet communication interface:	no
Laser protection class:	without
Design of the interface for safety-related communication:	other
With PROFIBUS communication interface:	no
Height of the sensor:	21 mm
Cable sheath material:	Polyvinyl chloride (PVC)
With other analog output:	no
Sensor wavelength:	940 nm
Button function:	light switching
With communication interface AS-Interface:	no
Setting method:	other
Housing material:	plastic
Explosion protection category for gas:	without
Safety type according to IEC 61496-1:	1
Width of the sensor:	18 mm
Equipment protection class:	Protection class 3
With communication interface RS-232:	no
Fork width:	5 mm
With communication interface SSD:	no
Rated control supply voltage Us at DC:	4.5 to 26.4 V
Pre-failure message:	no
Explosion protection category for dust:	without
Design of the electrical connection:	Cable
Reflector included in delivery:	no
Type of light:	Infrared light
With communication interface INTERBUS:	no
Suitable for safety functions:	no
Number of semiconductor outputs with signaling function:	1
Reaction time:	0.17 ms
With Monitoring function of downstream devices:	no
With RS-422 communication interface:	no
With analog communication interface:	no
Ambient temperature:	-25 to 55 °C
Fork depth:	9 mm
With CANOpen communication interface:	no
Design of the switching function:	Normally open (NO)
AWG number:	28
Switching frequency:	3000 Hz
Analog output -10 V ... +10 V:	no
Analog output 4 mA ... 20 mA:	no
With Ethernet communication interface:	no
With RS-485 communication interface:	no
Analog output 0 mA ... 20 mA:	no
Housing design:	Special design
Analog output 0 V ... 10 V:	no
Lenght of the sensor:	13 mm
With restart lock:	no
Material of the optical surface:	Plastic
Rated switching distance:	5 mm
Design of the switching output:	NPN
Max. Output current:	100 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	other
Protection class (NEMA):	other

Characteristics

Design of the switching functionNormally open (NO)

Switching frequency3000 Hz

HABEE-SX871A 2M

Manufacturer

HAN143910

GTIN4536854355622

Design of the interface for safety-related communicationOther

Design of the switching outputNPN

Design of the electrical connectionCable

Rated control supply voltage Us at DC4.5 to 26.4V

Width of the sensor18 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designSpecial design

Height of the sensor21 mm

Length of the sensor13 mm

IP protection)Other

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialPlastic
