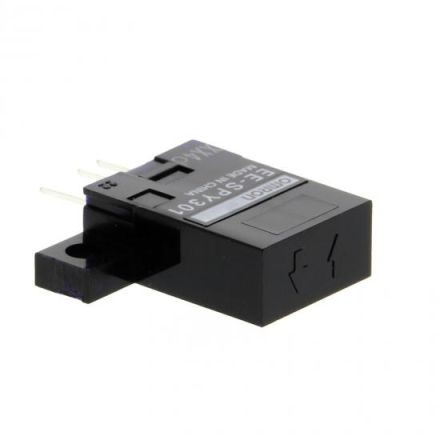

Miniature light sensor, horizontal design (radial), switching distance 5 mm, dark switching, NPN, plug connection
| Property | Value |
| Scanning range: | 0 to 9 mm |
| Rated control supply voltage Us at DC: | 4.5 to 26.4 V |
| Max. Output current: | 80 mA |
| Button function: | dark switching |
| Protection class (IP): | IP50 |
| Length of sensor: | 7 mm |
| Width of sensor: | 26 mm |
| Height of sensor: | 20 mm |
| With analog communication interface: | no |
| With RS-422 communication interface: | no |
| Max. Switching distance: | 5 mm |
| Response time: | 5 ms |
| Reflector included in delivery: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| AWG number: | 24 |
| With other analog output: | no |
| Safety type according to IEC 61496-1: | 1 |
| With communication interface SSI: | no |
| With monitoring function of downstream devices: | no |
| Analog output 0 V ... 10 V: | no |
| Wavelength of the sensor: | 940 nm |
| With communication interface RS-232: | no |
| With communication interface AS-Interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With INTERBUS communication interface: | no |
| Design of the interface for safety-related communication: | other |
| With CANOpen communication interface: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | Flat plug connection |
| Design of the switching output: | NPN |
| Design of the switching function: | Normally open (NO) |
| Equipment protection class: | Protection class 0 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Special design |
| Laser protection class: | without |
| Light type: | Infrared light |
| Switching frequency: | 100 Hz |
| Type of voltage: | DC |
| Ambient temperature: | -10 to 55 °C |
| Pre-failure warning: | no |
| Material of the optical surface: | plastic |
| Material of the housing: | plastic |
| Material of the cable sheath: | other |
| With time function: | no |
| Protection class (NEMA): | other |
