Rated operating current Ie at DC-13, 230 V0.4 A
Rated operating current Ie at DC-13, 125 V0.8 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V10 A

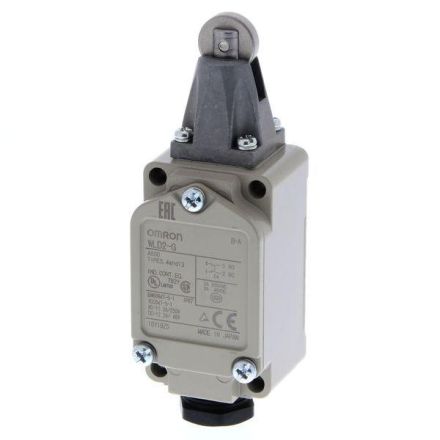

HABWLD2-G
HAN148955
GTIN4536854167027
Number of contacts as normally open1
Number of contacts as opener1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementTappet
Design of the electrical connectionConnector 1/2 inch
Alignment of the actuatorOther
Rated operating current Ie at AC-15, 230 V10A
Housing coatingPainted
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor69 mm
Length of the sensor42 mm
With status displayNo
Switching function latchingNo
IP protection)IP67
Protection class (NEMA)Other
Ambient temperature during operation-10 to 80 °C
Housing materialMetal
Forced openingNo
