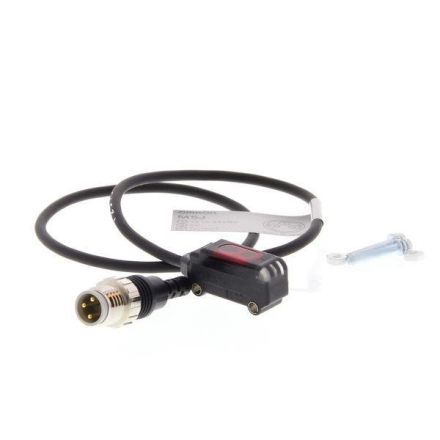

Photo switch, - miniature reflection light sensor, width 5..30mm, - PBT housing, rod 7x21x11mm, - red 670nm, 1ms, 12..24VDC, PNP, DON, - connector M8 3-pin on 0.3m PVC cable
| Property | Value |
| Ambient temperature: | -25 to 55 °C |
| Design of the switching output: | PNP |
| Explosion protection category for gas: | without |
| With restart lock: | no |
| Setting range: | 5 to 30 mm |
| Housing material: | Plastic |
| Switching frequency: | 1000 Hz |
| Width of sensor: | 7 mm |
| With RS-232 communication interface: | no |
| With DeviceNet communication interface: | no |
| Explosion protection category for dust: | without |
| Analog output -10 V ... +10 V: | no |
| With INTERBUS communication interface: | no |
| Design of the electrical connection: | Cable with connector |
| Button function: | dark switching |
| Lenght of the sensor: | 11 mm |
| Setting method: | other |
| Number of semiconductor outputs with signaling function: | 1 |
| Safety type according to IEC 61496-1: | 1 |
| Equipment protection class: | Protection class 2 |
| With analog communication interface: | no |
| Light type: | Unpolarized red light |
| Sensor wavelength: | 650 nm |
| With SSI communication interface: | no |
| With RS-422 communication interface: | no |
| Triangulation: | Background suppression |
| Analog output 0 V ... 10 V: | no |
| With monitoring function of downstream devices: | no |
| With PROFIBUS communication interface: | no |
| Cable sheath material: | Polyvinyl chloride (PVC) |
| Suitable for safety functions: | no |
| With CANOpen communication interface: | no |
| With AS-Interface communication interface: | no |
| Housing design: | Cuboid |
| With other analog output: | no |
| Pre-failure message: | no |
| AWG number: | 27 |
| Laser protection class: | without |
| Height of the sensor: | 24.5 mm |
| Rated switching distance: | 30 mm |
| Design of the switching function: | Opener (NC) |
| Scanning range: | 5 to 30 mm |
| Material of the optical surface: | Plastic |
| Max. Output current at the safe output: | 50 mA |
| With Ethernet communication interface: | no |
| Design of the interface for safety-related communication: | other |
| Analog output 4 mA ... 20 mA: | no |
| Light spot: | 0.018 mm² |
| With RS-485 communication interface: | no |
| Response time: | 1 ms |
| Reflector included in delivery included: | no |
| Analog output 0 mA ... 20 mA: | no |
| With communication interface SSD: | no |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. switching distance: | 30 mm |
| Max. Output current: | 50 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP67 |
