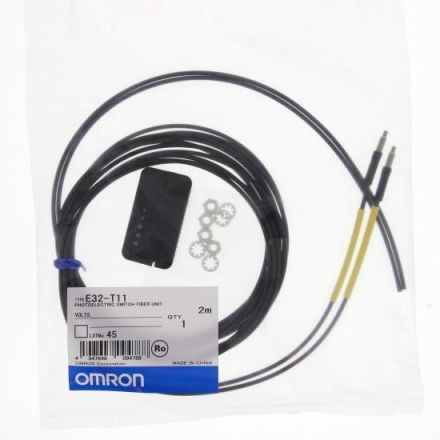

OMRON 182514 E32-T11 2M photo switch

In stock

SKU: 609363

Price on request

€108.61

€0

Overview

Photo switch, - fiber optic through-beam sensor, - head: M4, - suitable for robotics, - 2m PMMA fiber, - smallest bending radius: 4mm, - range with E3X-DAS up to 900mm

Property	Value
Design of the electrical connection:	other
Height of the amplifier:	33.5 mm
Equipment protection class:	Protection class 0
Ambient temperature:	-40 to 70 °C
Setting method:	other
Length of the amplifier:	71.8 mm
Laser protection class:	other
Protection class (IP):	IP67
With time function:	no
Light type:	other
Analog output 0 mA ... 20 mA:	no
Cable sheath material:	Polyvinyl chloride (PVC)
Voltage type:	other
Width of amplifier:	10 mm
Diameter of sensor:	4 mm
Design of switching output:	other
Material of housing:	plastic
Design of switching function:	other
With blanking function:	no
Analog output 0 V ... 10 V:	no
Analog output -10 V ... +10 V:	no
Material of the fiber optic core:	plastic
Nominal scanning range:	4000 mm
Housing design:	rod
Analog output 4 mA ... 20 mA:	no
Display:	other
