OMRON 183123 E2A3-M30KS20-WP-B1 2M OMC proximity switch

OMRON 183123 E2A3-M30KS20-WP-B1 2M OMC proximity switch

In stock

SKU: 703637

Price on request

€86.31

€0

Overview

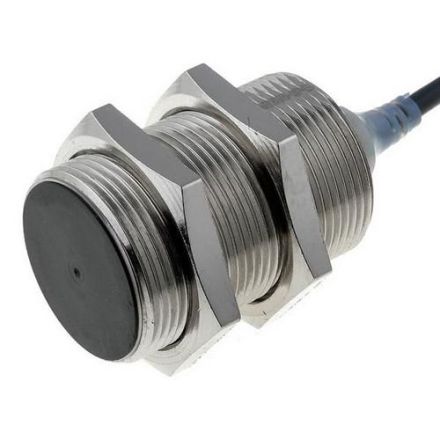

Proximity sensor - inductive, switching distance Sn=20mm, quasi-flush - brass housing, cylindrical. M30, 65mm long- 80Hz, 10..32VDC, 3-wire, PNP, 1S- 2m PVC cable- triple switching distance- Protection class: IP67 / IP69k- Approvals: CE

Property	Value
Switching distance:	20 mm
Type of voltage:	DC
Design of the switching output:	PNP
Mechanical installation condition for sensor:	flush
Width of the sensor:	30 mm
Height of the sensor:	30 mm
Performance level according to EN ISO 13849-1:	without
Category according to EN 954-1:	B
Design of the interface:	without
Design of the switching function:	normally open
Type of actuation:	metallic target
Switching frequency:	100 Hz
Length of the Sensors:	65 mm
Pressure-resistant:	no
Rated control supply voltage Us at DC:	24 V
Suitable for safety functions:	no
Diameter of the sensor:	30 mm
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	nickel-plated
Cascadable:	yes
Supply voltage:	24 V
With monitoring function for downstream devices:	no
Material of the Housing:	Metal
SIL according to IEC 61508:	without
