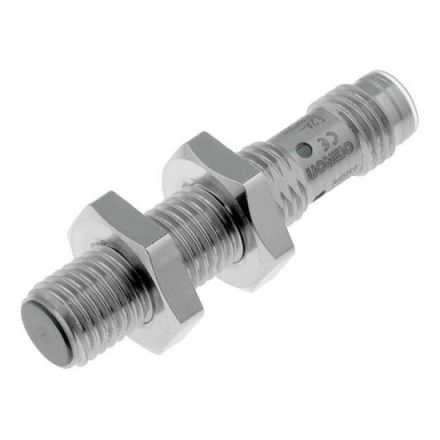

OMRON 183147 E2A3-S08KS03-M5-B1 OMC proximity switch

OMRON 183147 E2A3-S08KS03-M5-B1 OMC proximity switch

In stock

SKU: 703613

Price on request

€87.40

€0

Overview

Proximity sensor - inductive, switching distance Sn=3mm, quasi-flush - stainless steel housing, cylindrical. M8, 40mm long- 700Hz, 10..32VDC, 3-wire, PNP, 1S- 3-pin M8 connector on the housing- triple switching distance- Protection class: IP67 / IP69k- Approvals: CE

Property	Value
Switching distance:	3 mm
Type of voltage:	DC
Design of the switching output:	PNP
Mechanical installation condition for sensor:	flush
Width of the sensor:	8 mm
Height of the sensor:	8 mm
Performance level according to EN ISO 13849-1:	without
Category according to EN 954-1:	B
Design of the interface:	without
Design of the switching function:	normally open
Type of actuation:	metallic target
Switching frequency:	700 Hz
Sensor length:	40 mm
Pressure-resistant:	no
Rated control supply voltage Us at DC:	24 V
Suitable for safety functions:	no
Sensor diameter:	8 mm
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Connector M8
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	other
Cascadable:	yes
Supply voltage:	24 V
With monitoring function for downstream devices:	no
Housing material:	Metal
SIL according to IEC 61508:	without

Characteristics

Diameter of the sensor8 mm

Mechanical installation condition for sensorFlush

Design of the switching functionCloser

Switching frequency700 Hz

Supply voltage24 V

HABE2A3-S08KS03-M5-B1 OMC

Manufacturer

HAN183147

GTIN4547648150194

Type of operationMetallic target

Implementation of the interfaceWithout

Design of the interface for safety-related communicationWithout

Design of the switching outputPNP

Design of the electrical connectionConnector M8

Rated control supply voltage Us at DC24V

Housing coatingOther

Width of the sensor8 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Height of the sensor8 mm

Length of the sensor40 mm

Performance Level according to EN ISO 13849-1Without

SIL according to IEC 61508Without

Switching distance3 mm

Voltage typeDC

Supply voltage24V

Housing materialMetal
