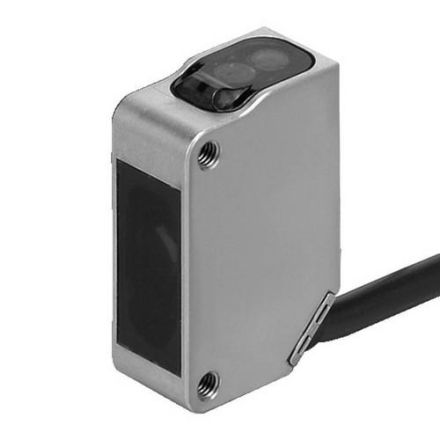

OMRON 227220 E3ZM-LS84H 5M Photoswitch

In stock
SKU: 609471
€231.16
Into a basketIn the basketGo

Overview

Photo switch - button/background suppression, 10..200mm - SUS-316L housing, cuboid 21x11x32mm - red 680nm, 1ms, 10..30VDC, PNP - 5m PVC cable - fixed background suppression - DON, LON switchable via cable - ideal for food & pharmaceuticals - highest resistance to cleaning agents - protection class: IP67/IP69k, Ecolab - approvals: UL, CE, ROHS

Property Value
Ambient temperature: -25 to 55 °C
Design of the switching output: PNP
Explosion protection category for gas: without
With restart lock: no
Setting range: 10 to 200 mm
Housing material: metal
Switching frequency: 1000 Hz
Sensor width: 10.8 mm
With RS-232 communication interface: no
Min. Reflector spacing: 10 mm
With DeviceNet communication interface: no
Explosion protection category for dust: without
Analog output -10 V ... +10 V: no
With INTERBUS communication interface: no
Design of the electrical connection: Cable
Button function: light/dark switching
Length of the sensor: 21 mm
Setting method: other
Number of semiconductor outputs with signaling function: 1
Safety type according to IEC 61496-1: 1
Equipment protection class: Protection class 0
With communication interface analog: no
Light type: Red light polarized
Wavelength of the sensor: 660 nm
With communication interface SSI: no
With RS-422 communication interface: no
Triangulation: Background suppression
Analog output 0 V ... 10 V: no
With monitoring function for downstream devices: no
With PROFIBUS communication interface: no
Cable sheath material: Polyvinyl chloride (PVC)
Suitable for safety functions: no
With CANOpen communication interface: no
With AS-Interface communication interface: no
Housing design: Cuboid
With other analog output: no
Pre-failure message: no
AWG number: 24
Laser protection class: without
Height of the sensor: 32.2 mm
Rated switching distance: 200 mm
Switching function design: Normally open (NO)
Sensing range: 10 to 200 mm
Material of the optical surface: Plastic
Max. Output current at the safe output: 100 mA
With Ethernet communication interface: no
Design of the interface for safety-related communication: other
Analog output 4 mA ... 20 mA: no
With RS-485 communication interface: no
Response time: 1 ms
With reflector: no
Analog output 0 mA ... 20 mA: no
With communication interface SSD: no
Rated control supply voltage DC: 10 to 30 V
Max. switching distance: 200 mm
Max. output current: 100 mA
Type of voltage: DC
With time function: no
Protection class (IP): IP67

Characteristics

Design of the switching functionNormally open (NO)
Switching frequency1000 Hz
HABE3ZM-LS84H 5M
ManufacturerOMRON
HAN227220
GTIN4547648279253
Design of the interface for safety-related communicationOther
Design of the switching outputPNP
Design of the electrical connectionCable
Width of the sensor10.8 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor32.2 mm
Length of the sensor21 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-25 to 55 °C
Housing materialMetal
