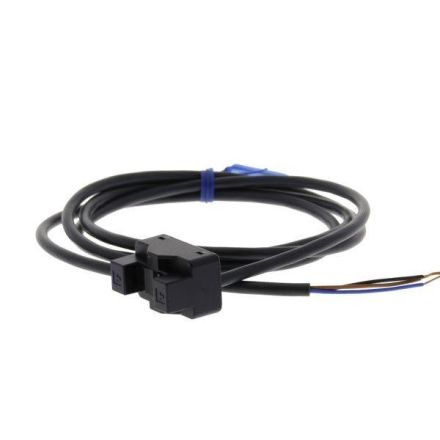

231172 EE-SPX613 3M photo switch Manufacturer article number: 231172, Manufacturer article name: EE-SPX613 3M
| Property | Value |
| Max. Switching distance: | 13 mm |
| With communication interface SSI: | no |
| With communication interface DeviceNet: | no |
| Laser protection class: | without |
| Design of the interface for safety-related communication: | other |
| With communication interface PROFIBUS: | no |
| Height of the sensor: | 16 mm |
| Material of the cable sheath: | Polyvinyl chloride (PVC) |
| With other analog output: | no |
| Sensor wavelength: | 940 nm |
| Button function: | light/dark switching |
| With communication interface AS-Interface: | no |
| Setting method: | other |
| Housing material: | plastic |
| Explosion protection category for gas: | without |
| Width of Sensors: | 26 mm |
| Equipment protection class: | Protection class 3 |
| With communication interface RS-232: | no |
| Fork width: | 13 mm |
| With communication interface SSD: | no |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Pre-fault message: | no |
| Explosion protection category for dust: | without |
| Design of the electrical connection: | Cable |
| Reflector included in delivery: | no |
| Type of light: | Infrared light |
| With communication interface INTERBUS: | no |
| Suitable for safety functions: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With monitoring function of downstream devices: | no |
| With communication interface RS-422: | no |
| With analog communication interface: | no |
| Ambient temperature: | -10 to 55 °C |
| With CANOpen communication interface: | no |
| Switching function execution: | programmable/configurable |
| AWG number: | 25 |
| Analog output -10 V ... +10 V: | no |
| Analog output 4 mA ... 20 mA: | no |
| With Ethernet communication interface: | no |
| With RS-485 communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| Housing design: | Special design |
| Analog output 0 V ... 10 V: | no |
| Sensor length: | 19 mm |
| With Restart lock: | no |
| Material of the optical surface: | plastic |
| Rated switching distance: | 13 mm |
| Design of the switching output: | NPN |
| Max. Output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP50 |
| Protection class (NEMA): | other |
