Mechanical installation condition for sensorOther
Design of the switching functionCloser
Switching frequency1000 Hz
Supply voltage10 to 30 V

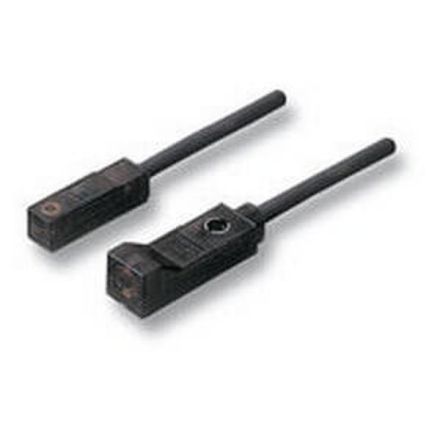

HABE2S-W15 1M OM
HAN233123
GTIN4536854841927
Type of operationMetallic target
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the switching outputPNP
Design of the electrical connectionOther
Rated control supply voltage Us at DC12 to 24 V
Housing coatingOther
Width of the sensor5.9 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designSpecial design
Height of the sensor22.3 mm
Length of the sensor5.9 mm
Performance Level according to EN ISO 13849-1Level a
SIL according to IEC 61508Without
Switching distance1.6 mm
Voltage typeDC
Supply voltage10 to 30 V
Housing materialPlastic
