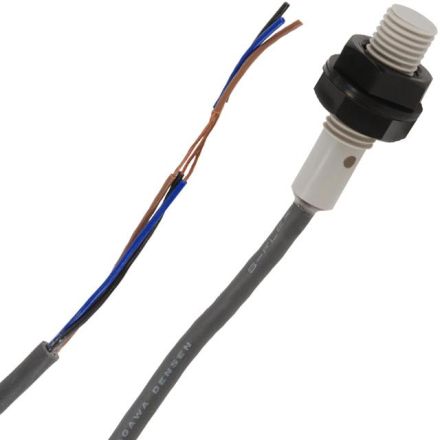

OMRON 235694 E2F-X2F1 2M OMS proximity switch

OMRON 235694 E2F-X2F1 2M OMS proximity switch

In stock

SKU: 611103

Price on request

€67.17

€0

Overview

Proximity sensor - inductive, switching distance Sn=2mm, flush - polyacrylate housing, cylindrical. M12, 38mm long - 1.5kHz, 10..30VDC, 3-wire, PNP, 1S - 2m PVC cable - Protection class: IP67 - Approvals: CE

Property	Value
Switching distance:	2 mm
Type of voltage:	DC
Design of the switching output:	PNP
Mechanical installation condition for sensor:	flush
Performance level according to EN ISO 13849-1:	Level a
Category according to EN 954-1:	B
Design of the interface:	without
Design of the switching function:	normally open
Type of actuation:	metallic target
Switching frequency:	1500 Hz
Length of the sensor:	38 mm
Pressure-resistant:	no
Rated control supply voltage Us at DC:	12 to 24 V
Suitable for safety functions:	no
Diameter of the sensor:	12 mm
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	without
Design of the electrical connection:	cable
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	other
Cascadable:	yes
Max. Output current at the safe output:	200 mA
Supply voltage:	10 to 30 V
With monitoring function for downstream devices:	no
Housing material:	plastic
SIL according to IEC 61508:	without
