Diameter of the sensor12 mm
Mechanical installation condition for sensorFlush
Design of the switching functionCloser
Switching frequency1000 Hz
Supply voltage12 to 24 V

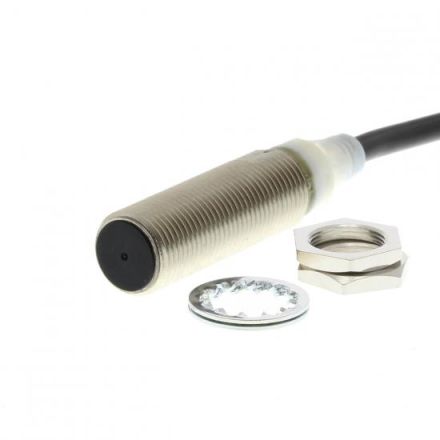

HABE2A-M12KS02-WP-B1-TP 5M OMS
HAN236985
GTIN4547648424639
Type of operationMetallic target
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the switching outputPNP
Design of the electrical connectionCable
Rated control supply voltage Us at DC12 to 24 V
Housing coatingOther
Width of the sensor12 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCylinder, thread
Height of the sensor12 mm
Length of the sensor59 mm
Performance Level according to EN ISO 13849-1Level a
SIL according to IEC 61508Without
Switching distance2 mm
Voltage typeDC
Supply voltage12 to 24 V
Housing materialMetal
