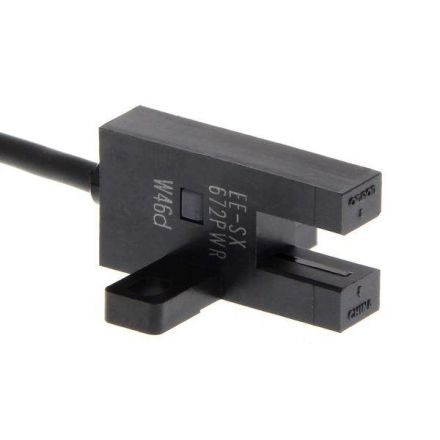

OMRON 237966 EE-SX672P-WR 1M Photo switch

OMRON 237966 EE-SX672P-WR 1M Photo switch

In stock

SKU: 609553

Price on request

€51.80

€0

Into a basketIn the basketGo

Overview

237966 EE-SX672P-WR 1M photo switch Manufacturer article number: 237966, Manufacturer article name: EE-SX672P-WR 1M

Property	Value
Max. switching distance:	5 mm
With communication interface SSI:	no
Min. Object size:	0.8 mm
With DeviceNet communication interface:	no
Laser protection class:	without
Design of the interface for safety-related communication:	other
With PROFIBUS communication interface:	no
Height of the sensor:	22.2 mm
Cable sheath material:	Polyvinyl chloride (PVC)
With other analog output:	no
Sensor wavelength:	940 nm
Button function:	light/dark switching
With communication interface AS-Interface:	no
Setting method:	other
Housing material:	plastic
Explosion protection category for gas:	without
Sensor width:	26 mm
Equipment protection class:	Protection class 3
With communication interface RS-232:	no
Fork width:	5 mm
With communication interface SSD:	no
Rated control supply voltage Us at DC:	4.5 to 26.4 V
Pre-fault signal:	no
Explosion protection category for dust:	without
Design of the electrical connection:	Cable
Reflector included in delivery:	no
Light type:	infrared light
With communication interface INTERBUS:	no
Suitable for safety functions:	no
Number of semiconductor outputs with signaling function:	1
Response time:	0.17 ms
With monitoring function for downstream devices:	no
With RS-422 communication interface:	no
With analog communication interface:	no
Ambient temperature:	-25 to 55 °C
Fork depth:	9 mm
With CANOpen communication interface:	no
Switching function design:	programmable/configurable
AWG number:	25
Switching frequency:	3000 Hz
Analog output -10 V ... +10 V:	no
Analog output 4 mA ... 20 mA:	no
With Ethernet communication interface:	no
With RS-485 communication interface:	no
Analog output 0 mA ... 20 mA:	no
Housing design:	Special design
Analog output 0 V ... 10 V:	no
Lenght of the sensor:	13.4 mm
With restart lock:	no
Material of the optical surface:	plastic
Rated switching distance:	5 mm
Design of the switching output:	PNP
Max. Output current:	50 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP50
Protection class (NEMA):	other

Characteristics

Design of the switching functionProgrammable/configurable

Switching frequency3000 Hz

HABEE-SX672P-WR 1M

Manufacturer

HAN237966

GTIN4547648354677

Design of the interface for safety-related communicationOther

Design of the switching outputPNP

Design of the electrical connectionCable

Rated control supply voltage Us at DC4.5 to 26.4V

Width of the sensor26 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designSpecial design

Height of the sensor22.2 mm

Length of the sensor13.4 mm

IP protection)IP50

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialPlastic

OMRON 237966 EE-SX672P-WR 1M Photo switch

Price on request

€51.80

€0

Into a basketIn the basketGo
