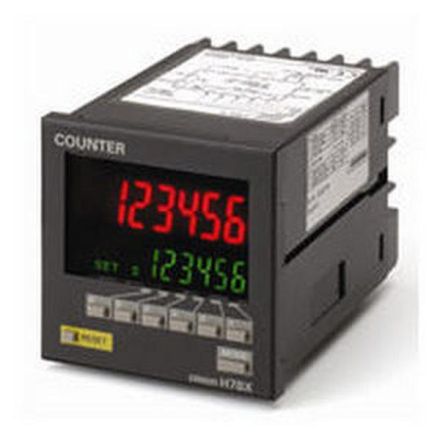

OMRON 241309 H7BX-AWD1 Counter

In stock

SKU: 613815

Price on request

€719.52

€0

Overview

Counter, - 6-digit VW counter, 72x72 mm, - color-switchable LED (red, orange, green), - 12..24VDC/24VAC, output: 1W + 1S, - 1-/ 2 VW, total, batch counter, 5 kHz, - difference counter, tachometer, - 5 input, 12 output modes, - IP66 (front), - UL, CSA, corresponds to EN61010-1

Property	Value
Input voltage frequency:	30 Hz
Accuracy class:	999999
Power loss:	5.3 W
Voltage type:	other
Design:	DIN rail
Suitable for series installation:	no
Width:	72 mm
Height:	72 mm
Width in division units:	4
Measuring device:	digital
Number of characters:	6
With reset function:	yes
Number of semiconductor outputs with signaling function:	1
Number of contact-based outputs with signaling function:	2
Input voltage at AC 50 Hz:	20.4 to 26.4 V
Input voltage at AC 60 Hz:	20.4 to 26.4 V
Input voltage at DC:	12 to 24 V
