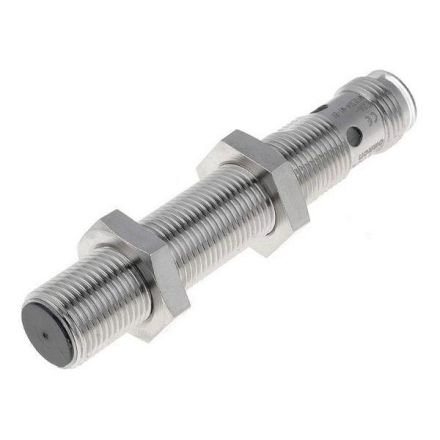

OMRON 244363 E2A-M12LS02-M1-B1 OMS proximity switch

OMRON 244363 E2A-M12LS02-M1-B1 OMS proximity switch

In stock

SKU: 611271

Price on request

€51.51

€0

Overview

Proximity sensor, - inductive, switching distance Sn=2mm, flush, - brass housing, cylindrical. M12, 70mm long, - 1KHz, 10..30VDC, 3-wire, PNP, 1S, - 4-pin M12 connector on the housing, - Protection class: IP67 / IP69k, - Approvals: CE

Property	Value
Switching distance:	2 mm
Type of voltage:	DC
Design of the switching output:	PNP
Mechanical installation condition for sensor:	flush
Performance level according to EN ISO 13849-1:	Level a
Category according to EN 954-1:	B
Design of the interface:	without
Design of the switching function:	normally open
Type of actuation:	metallic target
Switching frequency:	1000 Hz
Pressure-resistant:	no
Rated control supply voltage Us at DC:	12 to 24 V
Suitable for safety functions:	no
Diameter of the sensor:	12 mm
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	without
Design of the electrical connection:	M12 connector
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Housing coating:	other
Cascadable:	yes
Max. Output current at the safe output:	200 mA
Supply voltage:	12 to 30 V
With monitoring function for downstream devices:	no
Housing material:	metal
SIL according to IEC 61508:	without

Characteristics

Diameter of the sensor12 mm

Mechanical installation condition for sensorFlush

Design of the switching functionCloser

Switching frequency1000 Hz

Supply voltage12 to 30 V

HABE2A-M12LS02-M1-B1 OMS

Manufacturer

HAN244363

GTIN4547648520096

Type of operationMetallic target

Implementation of the interfaceWithout

Design of the interface for safety-related communicationWithout

Design of the switching outputPNP

Design of the electrical connectionConnector M12

Rated control supply voltage Us at DC12 to 24 V

Housing coatingOther

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Performance Level according to EN ISO 13849-1Level a

SIL according to IEC 61508Without

Switching distance2 mm

Voltage typeDC

Supply voltage12 to 30 V

Housing materialMetal
