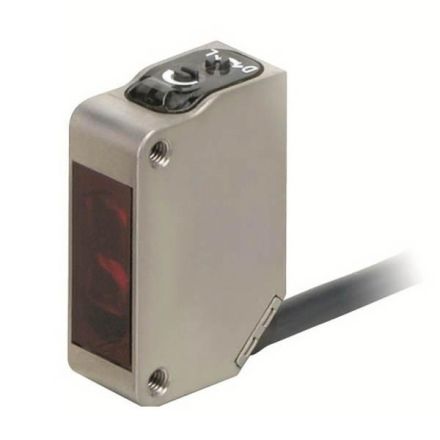

OMRON 249464 E3ZM-D82-S1J 0.3M Photoswitch

In stock

SKU: 609630

Price on request

€204.72

€0

Overview

Photo switch - reflection light sensor, scanning range 1000mm - stainless steel housing, cuboid 20x11x31mm - IR 860nm, 1ms, 10..30VDC, PNP, LON/DON - 0.3m cable tail with stainless steel M12 connector - protection class: IP67/IP69k, Ecolab - approvals: UL, CE

Property	Value
Rated control supply voltage Us at DC:	10 to 30 V
Protection class (IP):	IP67
With communication interface RS-422:	no
Response time:	1 ms
Analog output -10 V ... +10 V:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Safety type according to IEC 61496-1:	1
With communication interface SSI:	no
Sensor wavelength:	860 nm
With communication interface RS-232:	no
With communication interface AS-Interface:	no
Number of semiconductor outputs with signaling function:	1
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface INTERBUS:	no
With CANOpen communication interface:	no
Suitable for safety functions:	no
Design of the electrical connection:	M12 connector
Equipment protection class:	Protection class 0
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Laser protection class:	without
Type of voltage:	DC
Ambient temperature:	-25 to 55 °C
