Diameter of the sensor30 mm
Mechanical installation condition for sensorOther
Design of the switching functionCloser
Switching frequency100 Hz
Supply voltage10 to 32 V

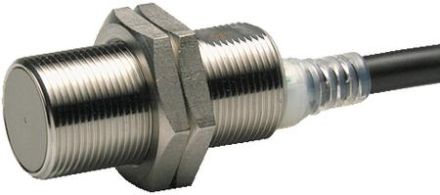

HABE2EH-X12B1 2M OMS
HAN290046
GTIN4547648628662
Type of operationMetallic target
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the switching outputPNP
Design of the electrical connectionCable
Rated control supply voltage Us at DC12 to 24 V
Housing coatingOther
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCylinder, thread
Length of the sensor60 mm
Performance Level according to EN ISO 13849-1Level a
SIL according to IEC 61508Without
Switching distance12 mm
Voltage typeDC
Supply voltage10 to 32 V
Housing materialMetal
