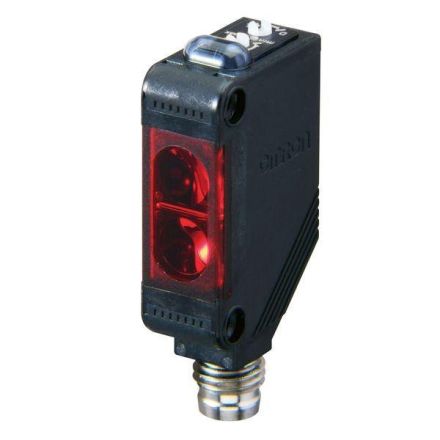

Photo switch, - reflection light barrier, range 4m, - PBT housing, cuboid 20x11x31mm, - red 680nm, 1ms, 10..30VDC, PNP, LON fix, - 0.3m cable with M8 3-pin connector, - without polarization filter, - protection class: IP67/IP69k, - approvals: UL, - protection class: IP67/IP69k, - approvals: UL, CE
| Property | Value |
| Rated switching distance: | 4000 mm |
| Max. switching distance: | 4000 mm |
| Min. Reflector distance: | 100 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 31 mm |
| Width of sensor: | 10.8 mm |
| Length of sensor: | 20 mm |
| Reaction time: | 1 ms |
| Switching frequency: | 1000 Hz |
| Laser protection class: | without |
| Type of voltage: | DC |
| Material of the housing: | Plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With communication interface DeviceNet: | no |
| Execution of the switching function: | Normally open (NO) |
| With communication interface INTERBUS: | no |
| With communication interface analog: | no |
| With communication interface Ethernet: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With communication interface PROFIBUS: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | Red light polarized |
| Material of the optical surface: | Plastic |
| With RS-422 communication interface: | no |
| Setting method: | manual setting |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | Cable with connector |
| Design of the switching output: | PNP |
| Equipment protection class: | Protection class 0 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Max. Output current at the safe output: | 100 mA |
| Ambient temperature: | -25 to 55 °C |
| Safety type according to IEC 61496-1: | 1 |
| With monitoring function for downstream devices: | no |
| Sensor wavelength: | 680 nm |
| With restart lock: | no |
