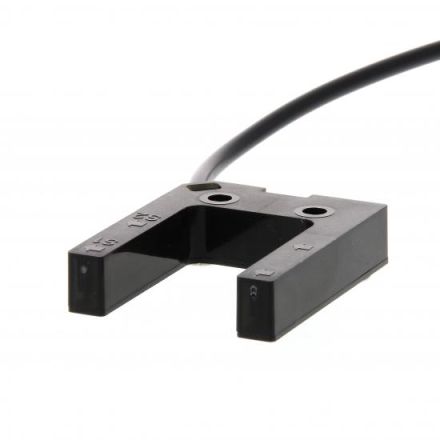

Photo switch, - fork light barrier, range 25mm, - PBT housing, cuboid 20x11x31mm, - 2m PVC cable
| Property | Value |
| Max. switching distance: | 25 mm |
| With communication interface SSI: | no |
| Min. Object size: | 1.5 mm |
| With DeviceNet communication interface: | no |
| Laser protection class: | without |
| Design of the interface for safety-related communication: | other |
| With PROFIBUS communication interface: | no |
| Height of the sensor: | 40 mm |
| Material of the cable sheath: | other |
| With other analog output: | no |
| Sensor wavelength: | 940 nm |
| Button function: | light/dark switching |
| With AS-Interface communication interface: | no |
| Setting method: | manual setting |
| Housing material: | plastic |
| Explosion protection category for gas: | without |
| Safety type according to IEC 61496-1: | 1 |
| Width of the sensor: | 11 mm |
| Equipment protection class: | Protection class 0 |
| With communication interface RS-232: | no |
| Fork width: | 25 mm |
| With communication interface SSD: | no |
| Rated control supply voltage Us at DC: | 10.8 to 26.4 V |
| Pre-failure message: | no |
| Explosion protection category for dust: | without |
| Design of the electrical connection: | Cable |
| Reflector included in delivery: | no |
| Type of light: | Infrared light |
| With communication interface INTERBUS: | no |
| Suitable for safety functions: | no |
| Number of semiconductor outputs with signaling function: | 2 |
| Reaction time: | 1 ms |
| With monitoring function downstream devices: | yes |
| With RS-422 communication interface: | no |
| With analog communication interface: | no |
| Ambient temperature: | -25 to 55 °C |
| Fork depth: | 35 mm |
| With CANOpen communication interface: | no |
| Execution of the switching function: | programmable/configurable |
| AWG number: | 24 |
| Switching frequency: | 500 Hz |
| Analog output -10 V ... +10 V: | no |
| Analog output 4 mA ... 20 mA: | no |
| With Ethernet communication interface: | no |
| With RS-485 communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| Housing design: | Special design |
| Analog output 0 V ... 10 V: | no |
| Length of the sensor: | 50 mm |
| Max. Output current at the safe output: | 100 mA |
| With restart lock: | no |
| Material of the optical surface: | Plastic |
| Rated switching distance: | 25 mm |
| Design of the switching output: | NPN |
| Max. Output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP64 |
| Protection class (NEMA): | other |
