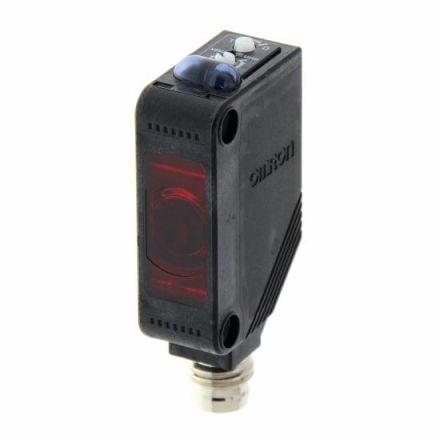

OMRON 333179 E3Z-LT86-D OMS photo switch

In stock
SKU: 609816
€136.05
Into a basketIn the basketGo

Overview

Optical sensor, through-beam laser, 60 m, PNP, M12 connector, receiver

Property Value
Design of the switching output: PNP
Rated switching distance: 15000 mm
Rated control supply voltage Us at DC: 12 to 24 V
Max. Output current: 100 mA
Button function: light/dark switching
Protection class (IP): IP67
Length of sensor: 20 mm
Width of sensor: 10.8 mm
Height of sensor: 31 mm
Design of interface for safety-related communication: other
Explosion protection category for gas: without
Design of the electrical connection: M8 connector
Laser protection class: without
With INTERBUS communication interface: no
With RS-485 communication interface: no
With Ethernet communication interface: no
Reflector included in delivery: no
Analog output 4 mA ... 20 mA: no
Housing design: Cuboid
AWG number: 25
With SSD communication interface: no
Pre-failure message: no
With CANOpen communication interface: no
With restart lock: no
Analog output -10 V ... +10 V: no
Housing material: Plastic
Analog output 0 V ... 10 V: no
Light type: polarized red light
With analog communication interface: no
With PROFIBUS communication interface: no
Switching function design: Normally open (NO)
Explosion protection category for dust: without
Opening angle: 15 °
Material of the optical surface: Plastic
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Wavelength of the sensor: 860 nm
Equipment protection class: Protection class 0
With communication interface RS-422: no
Max. Switching distance: 15000 mm
Switching frequency: 1000 Hz
With communication interface AS-Interface: no
Response time: 1 ms
With other analog output: no
With monitoring function of downstream devices: no
Scope of delivery of the one-way system: Receiver
With communication interface RS-232: no
Number of semiconductor outputs with signaling function: 1
With communication interface SSI: no
With communication interface DeviceNet: no
Cable sheath material: Polyvinyl chloride (PVC)
Ambient temperature: -25 to 55 °C
Setting method: manual setting
Type of voltage: DC
With Time function: no
Protection class (NEMA): other

Characteristics

Design of the switching functionNormally open (NO)
Switching frequency1000 Hz
HABE3Z-LT86-D OMS
ManufacturerOMRON
HAN333179
GTIN4547648679695
Design of the interface for safety-related communicationOther
Design of the switching outputPNP
Design of the electrical connectionConnector M8
Rated control supply voltage Us at DC12 to 24 V
Width of the sensor10.8 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor31 mm
Length of the sensor20 mm
IP protection)IP67
Protection class (NEMA)Other
Voltage typeDC
Ambient temperature-25 to 55 °C
Housing materialPlastic
OMRON 333179 E3Z-LT86-D OMS photo switch
OMRON 333179 E3Z-LT86-D OMS photo switch
€136.05
Into a basketIn the basketGo
