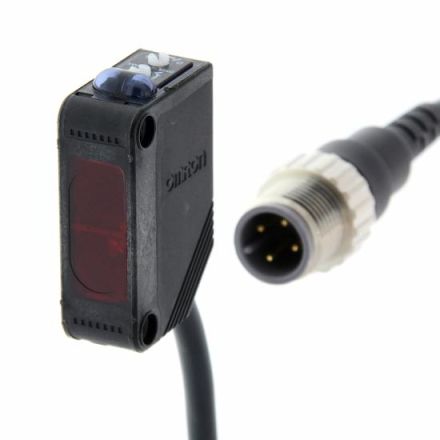

OMRON 338388 E3Z-D82-M1J 0.3M OMS Photoswitch

In stock
SKU: 609839
€143.20
Into a basketIn the basketGo

Overview

Photo switch - Diffuse light sensor, scanning range 1000mm - PBT housing, cuboid 20x11x31mm - IR 860nm, 1ms, 10..30VDC, PNP, LON/DON - M12 4-pin connector on 0.3m PVC cable - Protection class: IP67/IP69k - Approvals: UL, CE

Property Value
Scanning range: 0 to 1000 mm
Rated control supply voltage Us at DC: 10.8 to 26.4 V
Max. Output current: 100 mA
Button function: light/dark switching
Protection class (IP): IP67
Length of sensor: 20 mm
Width of sensor: 10.8 mm
Height of sensor: 31 mm
With analog communication interface: no
With RS-422 communication interface: no
Max. Sensing distance: 1000 mm
Max. Output current at the safe output: 100 mA
Response time: 1 ms
Reflector included in delivery: no
Analog output -10 V ... +10 V: no
With Ethernet communication interface: no
Analog output 0 mA ... 20 mA: no
With SSD communication interface: no
AWG number: 23
With other analog output: no
Safety type according to IEC 61496-1: 1
With communication interface SSI: no
With monitoring function of downstream devices: no
Analog output 0 V ... 10 V: no
Sensor wavelength: 860 nm
With communication interface RS-232: no
With communication interface AS-Interface: no
Number of semiconductor outputs with signaling function: 1
With restart lock: no
Analog output 4 mA ... 20 mA: no
With communication interface PROFIBUS: no
With communication interface RS-485: no
With communication interface DeviceNet: no
With communication interface INTERBUS: no
Design of the interface for safety-related communication: other
With communication interface CANOpen: no
Suitable for safety functions: no
Design of the electrical connection: Cable with connector
Design of the switching output: PNP
Design of the switching function: other
Equipment protection class: Protection class 0
Setting method: manual setting
Explosion protection category for gas: without
Explosion protection category for dust: without
Housing design: Cuboid
Laser protection class: without
Light type: Infrared light
Switching frequency: 1000 Hz
Type of voltage: DC
Ambient temperature: -25 to 55 °C
Pre-failure warning: no
Material of the optical surface: Plastic
Material of the housing: Plastic
Material of the cable sheath: Polyvinyl chloride (PVC)
With time function: no
Protection class (NEMA): other

Characteristics

Design of the switching functionOther
Switching frequency1000 Hz
HABE3Z-D82-M1J 0.3M OM
ManufacturerOMRON
HAN338388
GTIN4547648676229
Design of the interface for safety-related communicationOther
Design of the switching outputPNP
Design of the electrical connectionCable with connector
Rated control supply voltage Us at DC10.8 to 26.4 V
Width of the sensor10.8 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor31 mm
Length of the sensor20 mm
IP protection)IP67
Protection class (NEMA)Other
Voltage typeDC
Ambient temperature-25 to 55 °C
Housing materialPlastic
