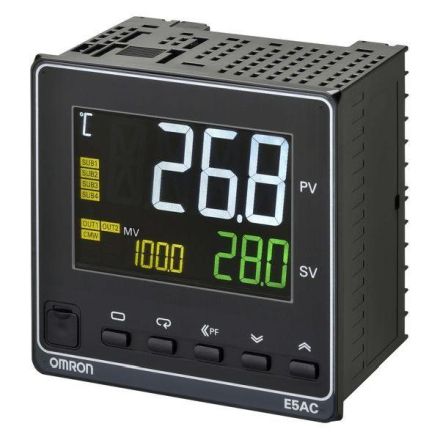

OMRON 374689 E5AC-RX4A5M-009 Temperature controller

In stock

SKU: 613300

Price on request

€551.91

€0

Overview

Temperature / process controller, - Digital universal controller, - 96x96mm, 100...240V AC, - white LCD display, - control output 1 relay, - 4x additional output relay, - input: Pt100, thermocouple, ES1-B, - current 0/4...20mA, voltage 0/1...5/10V, - 2-stage program, programmable logic operation, - 2 event inputs, communication RS-485, - heating break monitoring (3-phase)

Property	Value
Number of contacts as normally open:	4
Design of the electrical connection:	Screw connection
Voltage type for actuation:	AC
Width:	96 mm
Height:	96 mm
Depth:	60 mm
With removable terminals:	no
Number of measuring circuits:	1
Error storage possible:	no
External reset possible:	no
Rated control supply voltage Us at AC 50 Hz:	100 to 240 V
Rated control supply voltage Us at AC 60 Hz:	100 to 240 V
Temperature measuring range:	-200 to 2300 °C
