Catalog

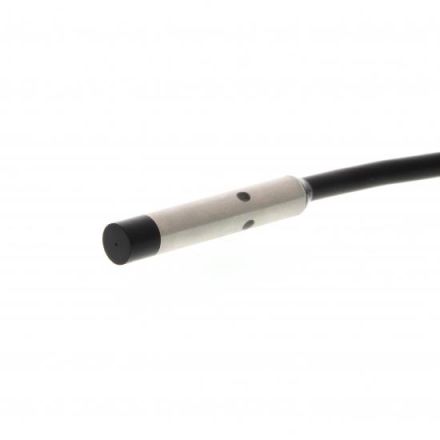

OMRON 375531 E2E-C06N04-WC-B2 2M OMS proximity switch

In stock
SKU: 611488
€98.98
Into a basketIn the basketGo

Overview

Proximity sensor - PROplus line, - µPROX inductive, switching distance Sn=4mm, not flush, - stainless steel housing, cylindrical. Ø 6.5mm, - 3kHz, 24VDC, 3-wire, PNP, normally closed, - 2m cable, - Protection class: IP67, - Approvals: CE

Property Value
Switching distance: 4 mm
Type of voltage: DC
Design of the switching output: PNP
Mechanical installation condition for sensor: flush
Performance level according to EN ISO 13849-1: Level a
Category according to EN 954-1: B
Design of the interface: without
Design of the switching function: Opener
Type of actuation: metallic target
Switching frequency: 4000 Hz
Length of the sensor: 35.9 mm
Pressure-resistant: no
Rated control supply voltage Us at DC: 12 to 24 V
Suitable for safety functions: no
Diameter of the sensor: 6.5 mm
Number of semiconductor outputs with signaling function: 1
Design of the interface for safety-related communication: without
Design of the electrical connection: cable
Explosion protection category for gas: without
Explosion protection category for dust: without
Housing design: Smooth cylinder
Housing coating: other
Cascadable: yes
Max. Output current at the safe output: 100 mA
Supply voltage: 12 to 24 V
With monitoring function for downstream devices: no
Housing material: metal
SIL according to IEC 61508: without

Characteristics

Diameter of the sensor6.5 mm
Mechanical installation condition for sensorFlush
Design of the switching functionOpener
Switching frequency4000 Hz
Supply voltage12 to 24 V
HABE2E-C06N04-WC-B2 2M OMS
ManufacturerOMRON
HAN375531
GTIN4548583406353
Type of operationMetallic target
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the switching outputPNP
Design of the electrical connectionCable
Rated control supply voltage Us at DC12 to 24 V
Housing coatingOther
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCylinder smooth
Length of the sensor35.9 mm
Performance Level according to EN ISO 13849-1Level a
SIL according to IEC 61508Without
Switching distance4 mm
Voltage typeDC
Supply voltage12 to 24 V
Housing materialMetal
