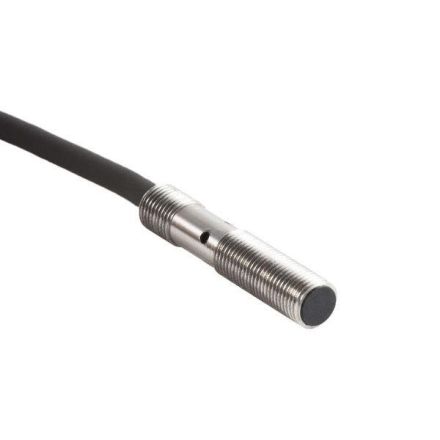

OMRON 375548 E2E-S04SR8-WC-C1 2M OMS proximity switch

OMRON 375548 E2E-S04SR8-WC-C1 2M OMS proximity switch

In stock

SKU: 611505

Price on request

€98.82

€0

Overview

Proximity sensor - PROplus line, - µPROX inductive, switching distance Sn=0.8mm, flush, - stainless steel housing, M4, - 5kHz, 24VDC, 3-wire, NPN, normally open, - 0.3m cable with 3-pin M8 connector, - protection class: IP67, - approvals: CE

Property	Value
Switching distance:	0.8 mm
Type of voltage:	DC
Design of the switching output:	NPN
Mechanical installation condition for sensor:	flush
Category according to EN 954-1:	B
Design of the interface:	without
Design of the switching function:	normally open
Type of actuation:	metallic target
Switching frequency:	5000 Hz
Length of the sensor:	27.1 mm
Pressure-resistant:	no
Rated control supply voltage Us at DC:	12 to 24 V
Suitable for safety functions:	no
Diameter of the sensor:	4 mm
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	without
Design of the electrical connection:	cable
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	other
Cascadable:	yes
Max. Output current at the safe output:	100 mA
Supply voltage:	10 to 30 V
With monitoring function for downstream devices:	no
Housing material:	metal
SIL according to IEC 61508:	without

Characteristics

Diameter of the sensor4 mm

Mechanical installation condition for sensorFlush

Design of the switching functionCloser

Switching frequency5000 Hz

Supply voltage10 to 30 V

HABE2E-S04SR8-WC-C1 2M OMS

Manufacturer

HAN375548

GTIN4548583405608

Type of operationMetallic target

Implementation of the interfaceWithout

Design of the interface for safety-related communicationWithout

Design of the switching outputNPN

Design of the electrical connectionCable

Rated control supply voltage Us at DC12 to 24 V

Housing coatingOther

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Length of the sensor27.1 mm

SIL according to IEC 61508Without

Switching distance0.8 mm

Voltage typeDC

Supply voltage10 to 30 V

Housing materialMetal
