Rated operating current Ie at DC-13, 230 V4 A
Rated operating current Ie at DC-13, 125 V4 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V3 A

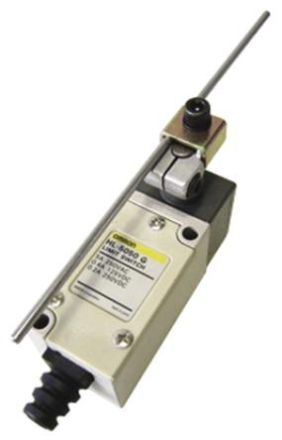

HABHL-5050G OMR
HAN378667
GTIN4548583439191
Number of contacts as normally open1
Number of contacts as opener1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementRod lever
Design of the electrical connectionPlug connection other
Alignment of the actuatorOther
Rated operating current Ie at AC-15, 230 V3 A
Housing coatingOther
Width of the sensor33 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor233.6 mm
Length of the sensor62.8 mm
With status displayNo
Switching functionOther
IP protection)IP65
Protection class (NEMA)Other
Ambient temperature during operation-5 to 65 °C
Housing materialMetal
Forced openingNo
