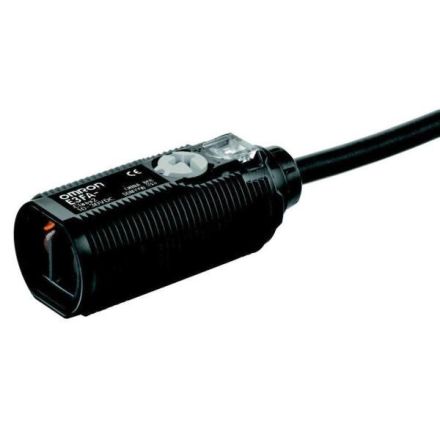

Photo switch - PRO line, reflection light barrier, range 500mm, coaxial optics, M18 plastic housing, protection class IP69k, NPN, 2m cable
| Property | Value |
| Rated switching distance: | 500 mm |
| Max. switching distance: | 500 mm |
| Min. reflector distance: | 100 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 18 mm |
| Width of sensor: | 15 mm |
| Length of sensor: | 41 mm |
| Diameter of sensor: | 18 mm |
| Response time: | 0.5 ms |
| Switching frequency: | 2000 Hz |
| Laser protection class: | without |
| Type of voltage: | DC |
| Housing material: | Plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | no |
| With DeviceNet communication interface: | no |
| Execution of the switching function: | Normally open (NO) |
| With INTERBUS communication interface: | no |
| With Analog communication interface: | no |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With communication interface PROFIBUS: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | polarized red light |
| Material of the optical surface: | plastic |
| With RS-422 communication interface: | no |
| Setting method: | manual setting |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with reporting function: | 1 |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | Cable |
| Design of the switching output: | NPN |
| Equipment protection class: | Protection class 0 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cylinder, thread |
| Max. output current at the safe output: | 100 mA |
| Ambient temperature: | -25 to 55 °C |
| Safety type according to IEC 61496-1: | 1 |
| With monitoring function for downstream devices: | no |
| Pre-failure message: | no |
| Sensor wavelength: | 624 nm |
| With restart lock: | no |
